MCB 6kA Miniature Circuit Breaker

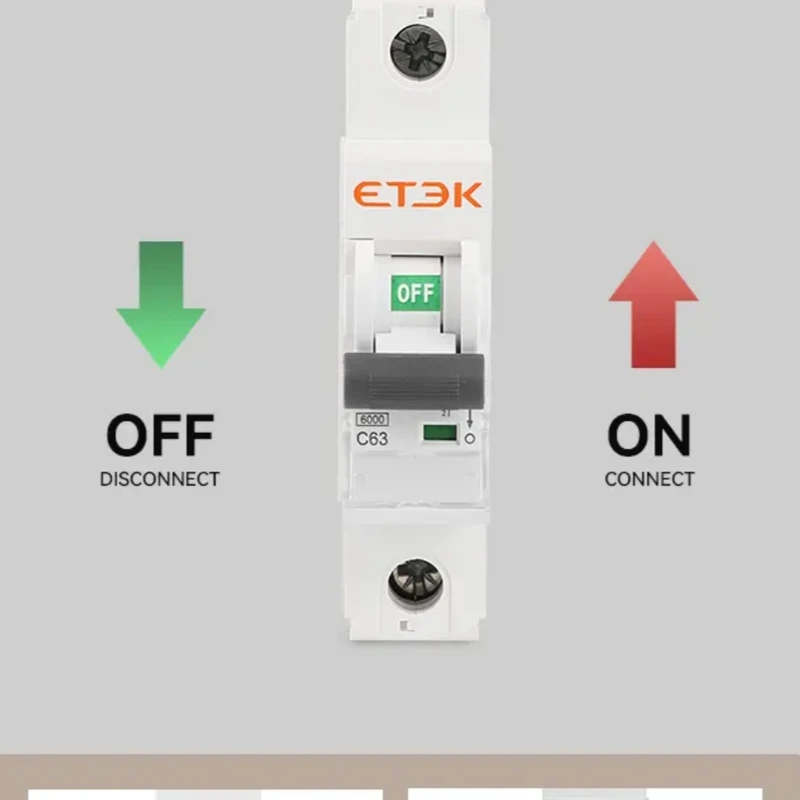

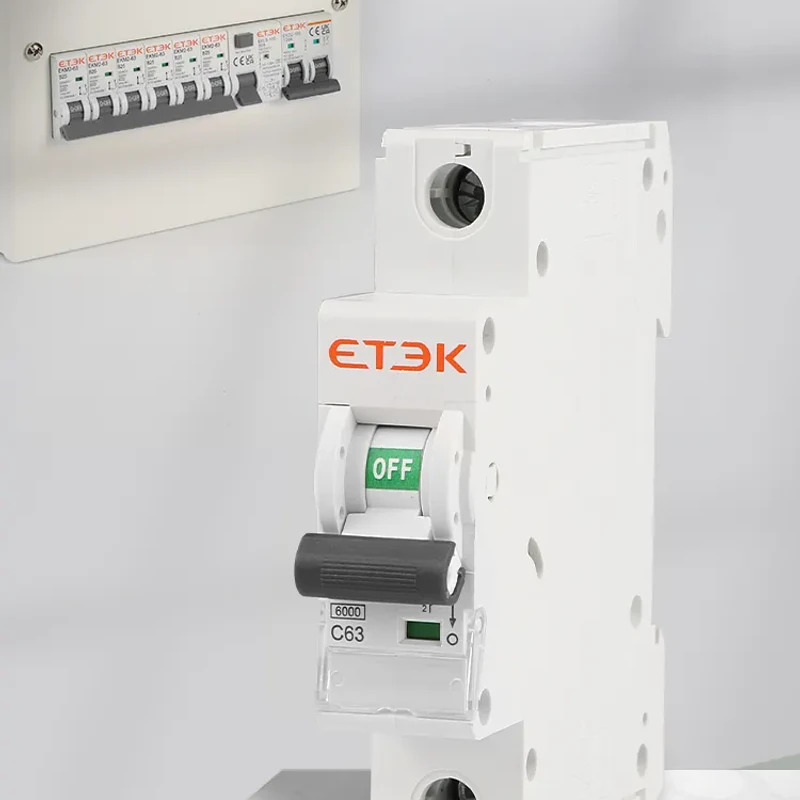

EKM3-63 MCB has pure green and red marks for ON-OFF and transparent cover for line marks. It can be used with other products for residential power distribution systems ≤63A.

● Standard: IEC60898-1

● Type of trip: Thermo-magnetic

● Rated current: 1~63A

● Rated voltage: 230/400V~240/415V

● Number of poles: 1P,2P,3P,4P,1P+N,3P+N

● Rated short-circuit breaking capacity: 6kA

● Tripping curve: B, C

● Ambient air temperature: -25...+40 ºC

● Connection: From top and bottom

● Certificates: CE, CB
